 SRX 900 Active Line Arrary Solution

HARMAN JBL SRX900 Series Subwoofer & Line Arrary Specifications in India 2025 The SRX900 Series is engineered for audio professionals who demand exceptional sound quality in a scalable, small- to medium-format sound reinforcement system. It delivers best-in-class performance with integrated amplification, user-adjustable DSP, comprehensive rigging and transport solutions, and an intuitive software control platform.

Leveraging JBL’s flagship technologies, SRX900 transducers offer superior output and ultra-low distortion. Advanced waveguides ensure precise pattern control, resulting in consistent, top-tier coverage. The cabinets are thoughtfully designed for durability, portability, and quick, efficient rigging.

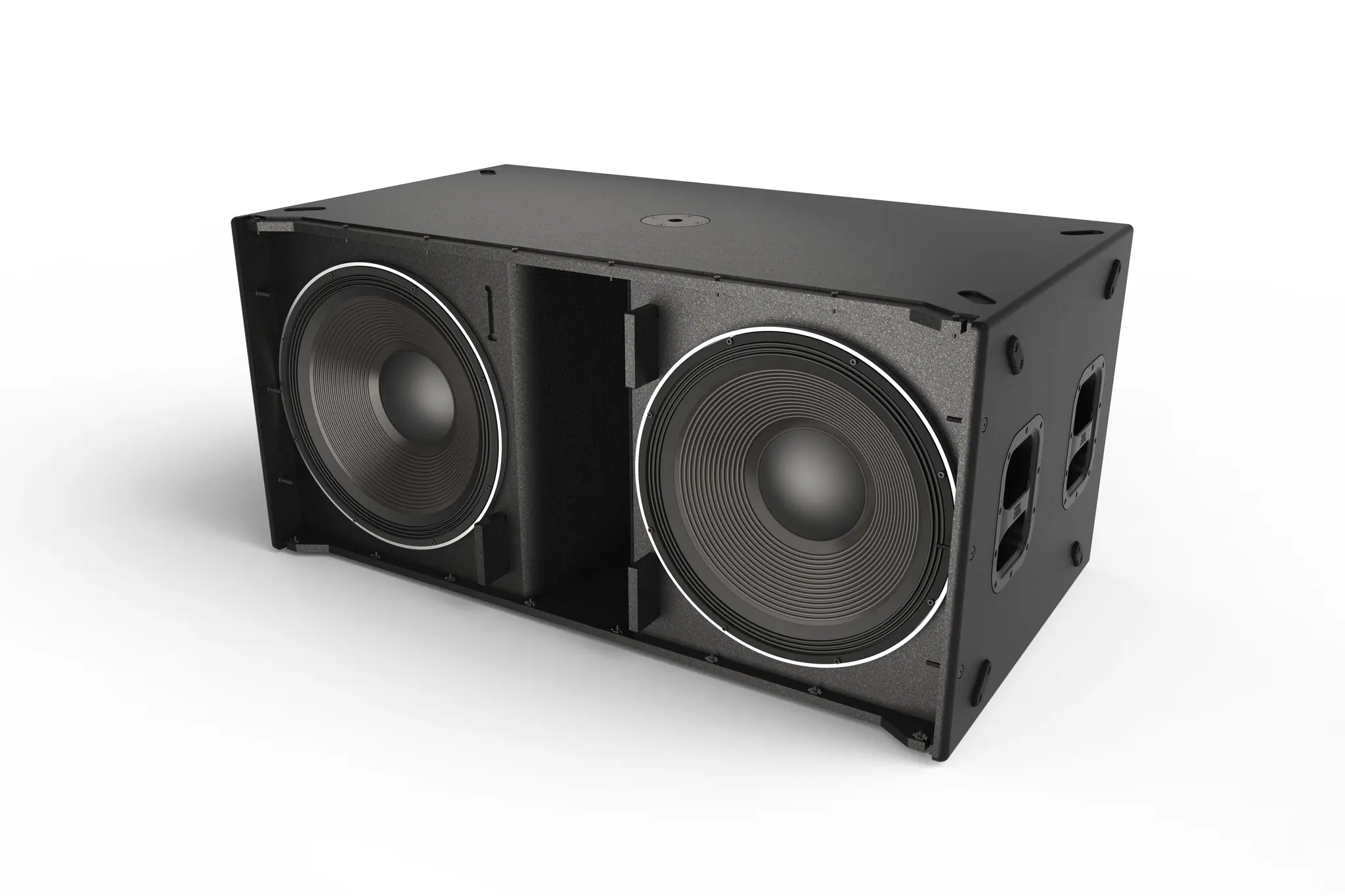

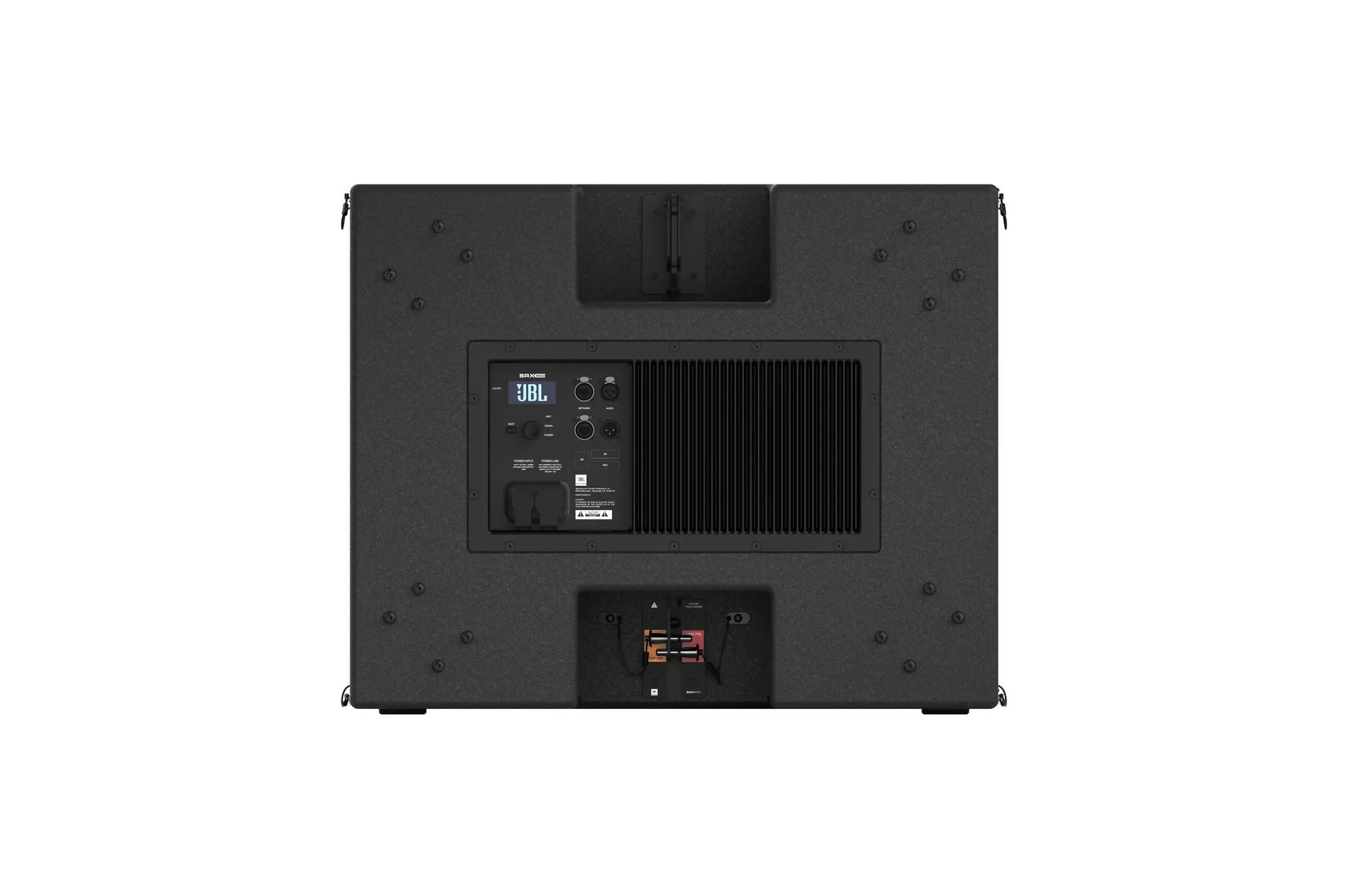

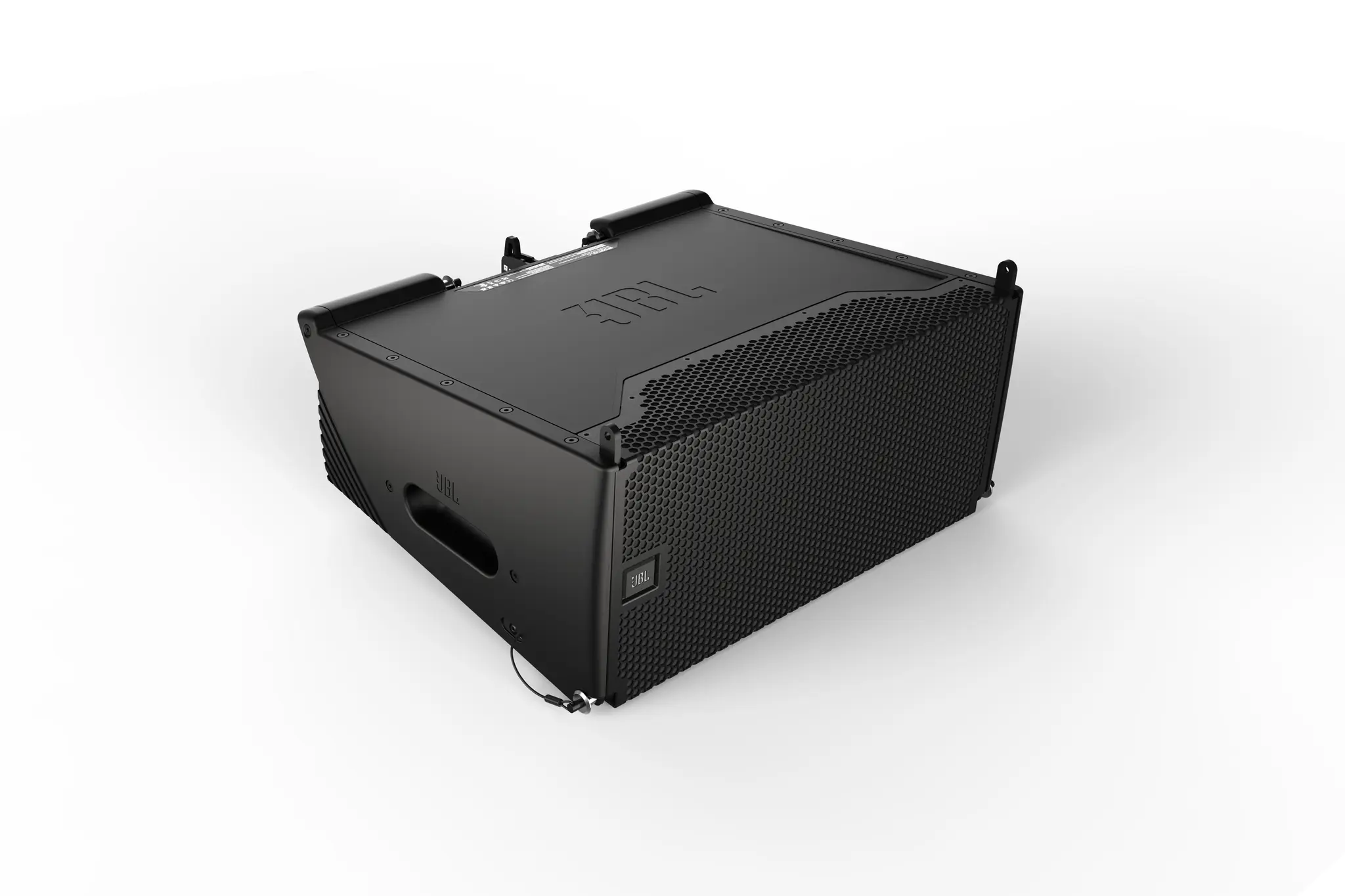

The SRX900 lineup includes dual 6.5-inch and dual 10-inch powered line array speakers, along with 15-inch and 18-inch powered subwoofers that support both flyable and ground-stacked configurations. Whether you’re expanding an existing rig or building a system from the ground up, SRX900’s modular design makes it easy to scale for any application or budget.

From DJs and live performers to rental houses and permanent installations, the SRX900 Series strikes the ideal balance between performance, flexibility, and value.

Designed for Maximum Intelligibility

Inspired by JBL’s flagship VTX series, the SRX900 Series features custom-designed transducers and advanced horn and waveguide technologies that deliver exceptional output and clarity—performance typically found only in premium three-way systems.

At the heart of the SRX900 woofers is JBL’s proprietary Differential Drive® technology, utilizing a dual voice coil and dual gap design. This configuration improves heat dissipation, reduces power compression, and offers a broader dynamic range compared to traditional single-coil systems. The transducers incorporate lightweight neodymium magnets and integrated heat sinks for enhanced thermal management. The result: extended frequency response, high output capability, and low distortion in a remarkably lightweight package.

For high frequencies, the SRX900 uses JBL’s 2432H-3 compression driver, which features a neodymium motor, a 3-inch titanium diaphragm, and a 1.5-inch exit. This driver delivers fast transients, excellent dynamic range, and extended sensitivity above 10 kHz—ensuring accurate, linear high-frequency performance at all output levels..

Even Coverage Across the Field

The SRX900 Series line arrays are built on JBL’s innovative Radiation Boundary Integrator™ (RBI) technology, originally developed for the flagship VTX Series. This patented design integrates both high- and low-frequency transducers onto a single horn, enhancing horizontal dispersion while keeping the cabinet footprint compact. A precisely engineered waveguide ensures seamless summation between cabinets, delivering smooth, consistent coverage from front to back. Additionally, the large-format horn provides extended low-frequency control and minimizes unwanted rear energy for cleaner, more focused performance.

Flexible, Modular, Cost-Efficient

The SRX900 Series delivers a complete, integrated system solution—featuring loudspeakers, subwoofers, and a full range of accessories designed to support versatile configurations while streamlining storage, transport, and rigging. Its modular, scalable architecture allows users to start with a smaller setup and expand as needs grow. With shared voicing targets and phase coherence across the lineup, SRX900 systems integrate effortlessly with other JBL touring sound products, ensuring consistent performance throughout your entire rig.



Advanced DSP Processing

The SRX900 models come with a comprehensive DSP package that gives users all the tools they need to fine-tune and optimize their systems. This includes a 24-band parametric EQ, up to 2,000 milliseconds of delay, and adjustable gain control. JBL’s proprietary Array Size Compensation (ASC) filter automatically adjusts for different array sizes, while the FIR-based Throw Distance Compensation (TDC) filter helps counteract sound loss caused by air, ensuring more even coverage without spending hours on measurements or manual tuning. Additionally, an internal noise generator lets you test the system quickly, even without a mixing console.



LevelMax Technology Safeguards Your Equipment

The SRX900 Series features the advanced LevelMax limiter suite, developed collaboratively by JBL and Crown engineers for Crown’s I-Tech HD professional touring amplifiers. This sophisticated system uses smart excursion-control algorithms to prevent mechanical damage to the transducers. With RMS limiting and long-term thermal protection, it effectively manages transducer temperatures, ensuring consistent, reliable performance in any environment.



Next-Generation Networking

The SRX900 Series supports HARMAN’s new HControl Ethernet protocol, which enhances network stability, reduces traffic load, and eliminates the complexity of managing IP addresses. Instead, users assign simple numerical IDs to each device for easy identification. With two switched network ports, daisy-chaining and network setup become straightforward. Equipped with Ethernet ports, SRX900 products allow seamless monitoring and configuration over the network. Since they use standard Ethernet protocols, you can also leverage affordable networking hardware like Ethernet switches and Wi-Fi access points for your setup.



Integrated Software Management

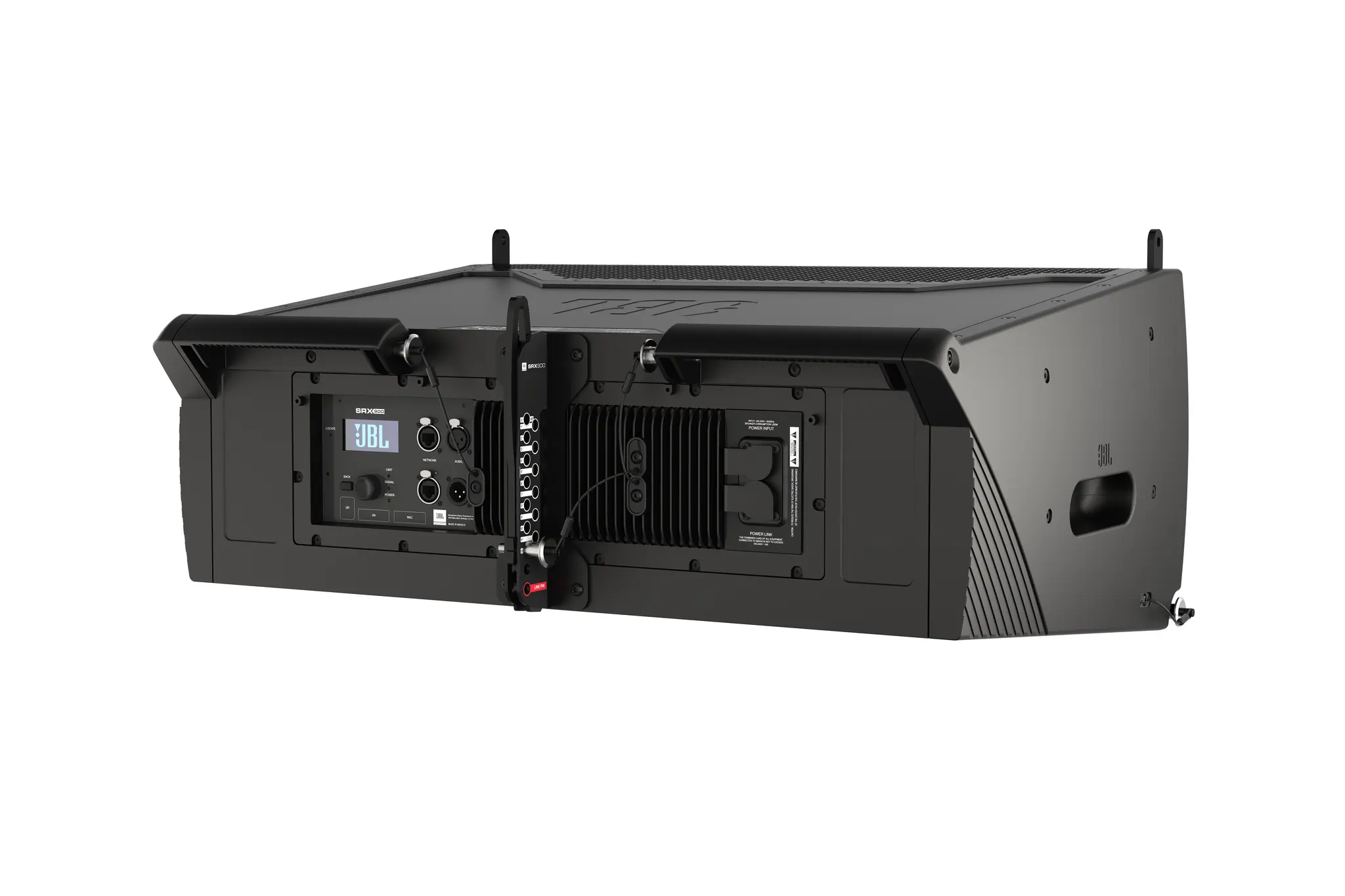

The SRX900 Series features a unified software suite that streamlines system design, control, and deployment across Windows, macOS, and iOS platforms. For system design, users can rely on JBL’s LAC-3 simulation software, while the new cross-platform JBL Performance app handles system management. Rigging data can be easily transferred using the Array Link companion app, available on both iOS and Android. Additionally, each speaker includes a rear-panel LCD screen, providing direct access to control functions—ideal for quick troubleshooting of large setups or on-the-spot configuration of smaller systems.



Efficiency Through Self-Powered Design

Since SRX900 Series line arrays and subwoofers are self-powered, there’s no need to match components or transport separate amplifier racks. Custom-designed Class D amplifiers are engineered specifically to optimize performance with SRX900 transducers. These amps are passively cooled and fully enclosed, preventing dust and moisture from reaching internal electronics. A universal switching-mode power supply supports voltages from 100 to 250V, while an automatic low-power mode reduces energy consumption when no audio signal is present. Depending on the region, users can power up to eight SRX906 or four SRX910 speakers on a single circuit, simplifying cabling and reducing system costs.



Streamlined Rigging Solutions

The SRX900 Series is engineered for both portable and permanent installations, offering flexible deployment options including pole-mounted, ground-stacked, and flown arrays of up to 16 cabinets. Its three-point rigging system—adapted from JBL’s VTX line—ensures fast, secure suspension, no matter the system size or the user’s experience level. Splay angles can be set while the system is on the ground, with cabinets automatically locking into place as they’re lifted. The rear rigging spine also functions as an additional heatsink, enhancing thermal management. A full range of accessories is available, including array frames, base plates, pole-mount and truss-clamp adapters, as well as transport cases, carts, and covers.
