Harman SRX900 Series SRX910LA Dual 10-inch Powered Line Array Loudspeaker 2025

JBL SRX900 Series: Scalable Power, Precision Sound

Harman SRX900 Series SRX910LA Dual 10-inch Powered Line Array Loudspeaker 2025 The JBL SRX900 Series is built on the same forward-thinking design principles that have long defined JBL’s legacy in professional audio. This next-generation family of powered line arrays and subwoofers is engineered to meet the increasing demand for scalable sound reinforcement solutions—ideal for rental companies, fixed installations, and musicians who want top-tier performance without sacrificing portability.

At the core of the series is the SRX910LA, a two-way active line array element purpose-built for mid- to large-sized applications. Whether you’re setting up for a touring act, outfitting a live venue, or managing an event rental, the SRX910LA delivers the flexibility, power, and clarity needed for high-impact sound. Integrated DSP and onboard amplification make setup fast and straightforward, delivering consistent, optimized performance wherever you go.

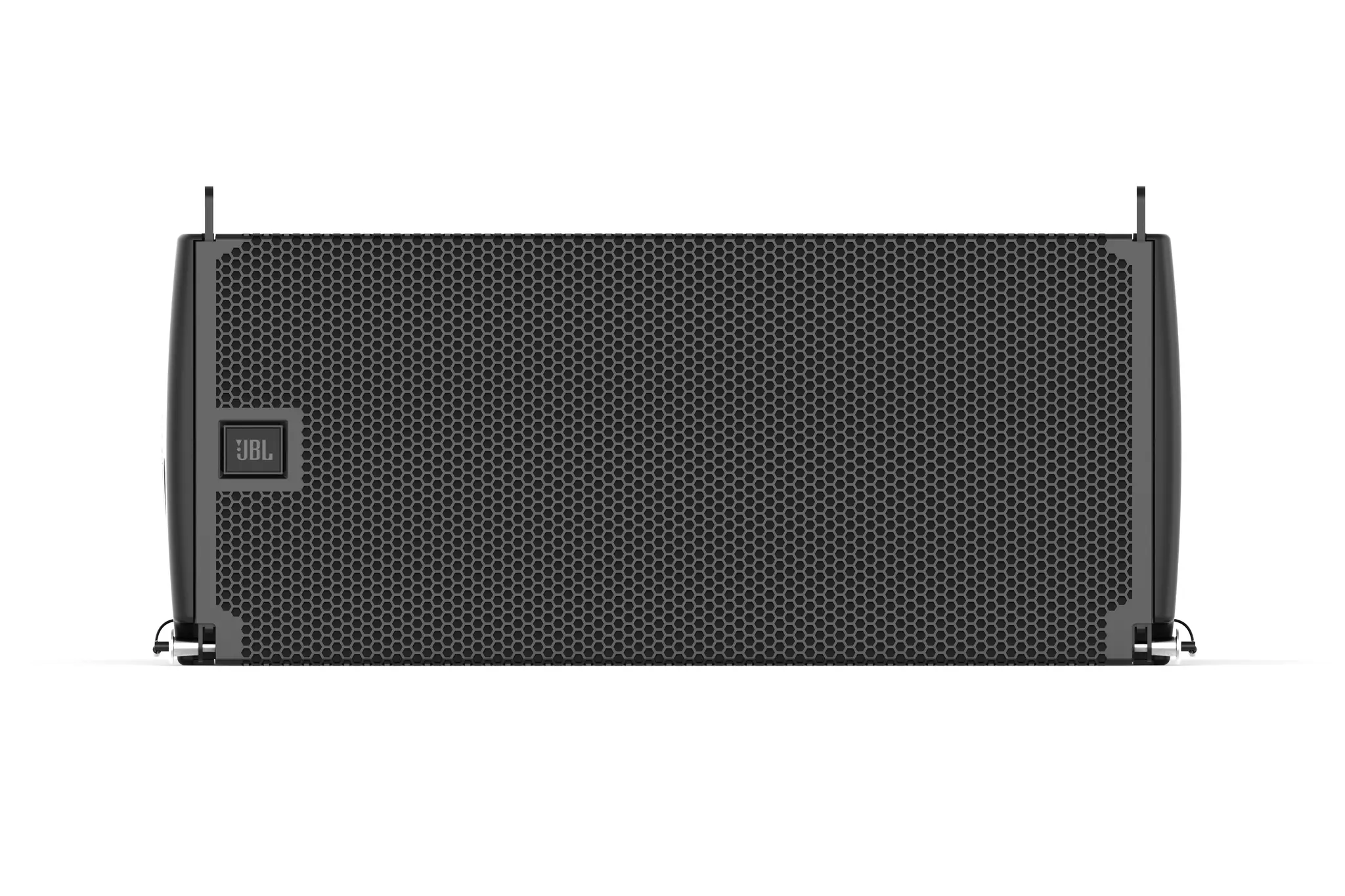

Inside, JBL’s premium components and newly designed acoustics ensure exceptional audio fidelity and impressive output. The SRX910LA features dual 10-inch neodymium Differential Drive® woofers and a 3-inch compression driver, all housed in a precision-engineered, composite enclosure that’s both rugged and lightweight.

The system also features JBL’s innovative three-point rigging for fast, safe, and flexible deployment. A comprehensive lineup of accessories makes it easy to adapt to any venue or installation. Plus, with the new JBL Performance software, users can control and manage their system seamlessly across Windows, macOS, and iPadOS platforms.

From setup to performance, the SRX910LA is designed to deliver consistent, powerful sound in a scalable, road-ready package.

Key Features

• Compact Yet Powerful Design
  Delivers high performance and sound density in a format that’s easy to pack and transport—perfect for touring and mobile setups.

• Exceptional Audio Clarity
  High-power transducers are engineered to minimize distortion and deliver clear, detailed sound with industry-leading output.

• Integrated Amplification
  Features a built-in, passively cooled Class D amplifier with a universal power supply for efficient, reliable operation anywhere in the world.

• Reliable Network Connectivity
  Dual Neutrik etherCON ports provide durable, professional-grade Ethernet connections for smooth signal flow and system control.

• Seamless Control Integration
  Compatible with HARMAN’s HControl Ethernet protocol, allowing for easy integration into existing control networks.

• Flexible Sound Tuning
  User-adjustable DSP lets you fine-tune performance to suit any environment or application, from live venues to permanent installs.

• Advanced Protection Technology
  LevelMax™ limiting uses intelligent excursion-control algorithms to safeguard the transducers while maintaining clean, dynamic sound.

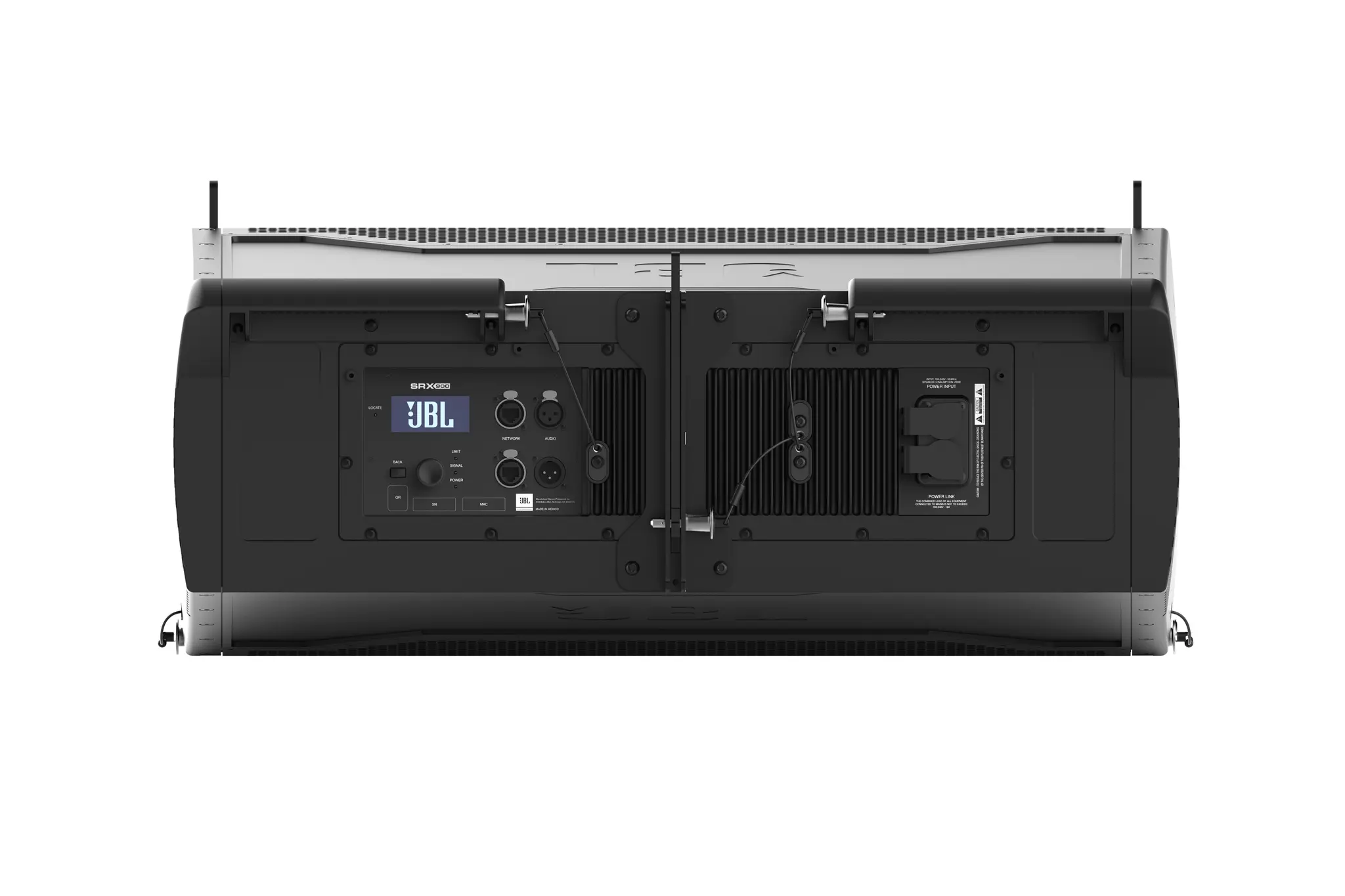

• Intuitive Onboard Interface
  A rear-panel LCD screen offers direct access to all system settings and controls, making setup and monitoring simple and efficient.

• Road-Ready Enclosure
  The reinforced composite cabinet is designed to be both lightweight and durable—ideal for frequent transport and demanding environments.

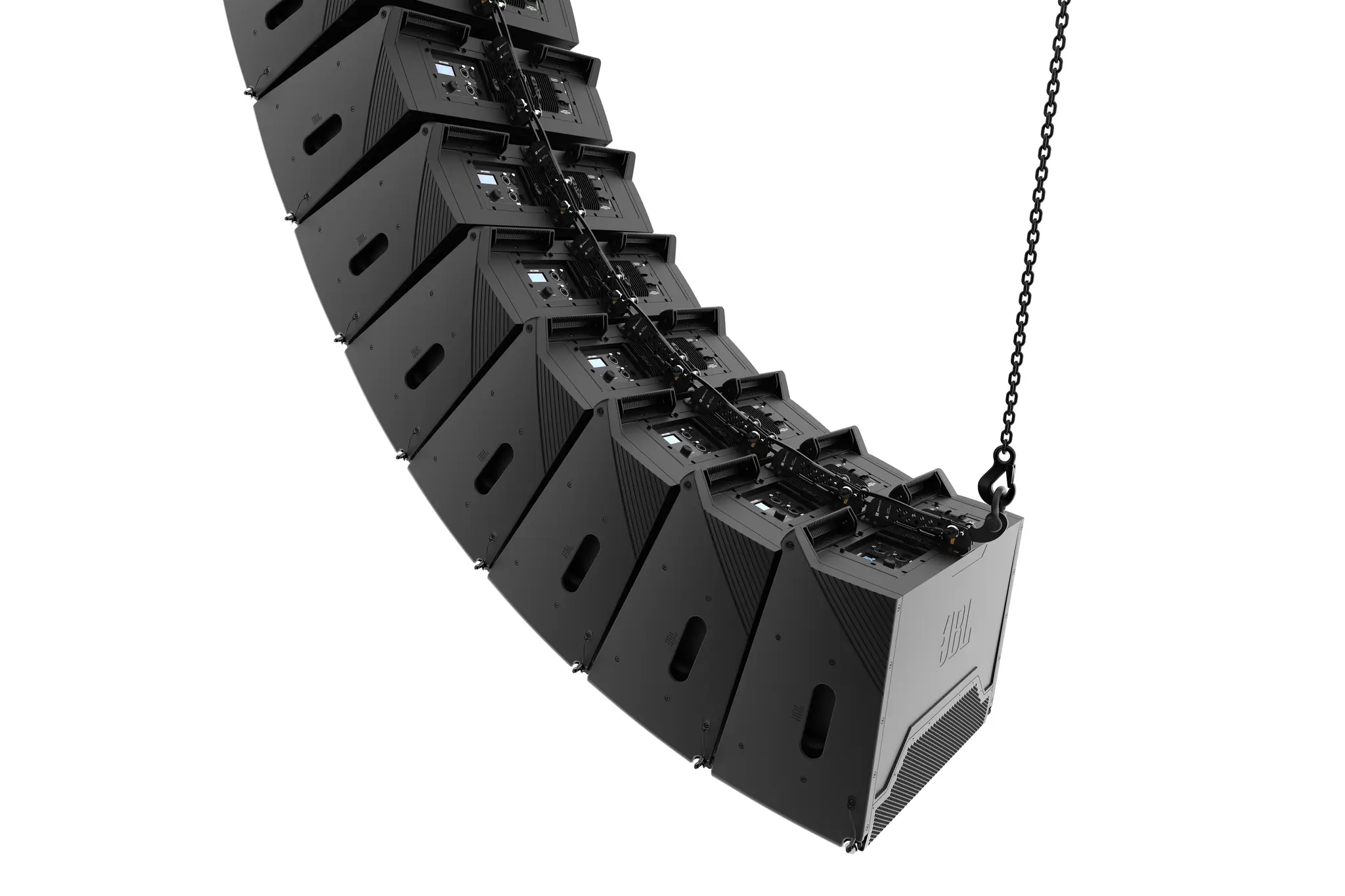

• Versatile Rigging Options
  A smart, three-point rigging system allows for quick, secure setups and a wide range of deployment configurations.

Technical Specifications

• Frequency Range (-10 dB):
  53 Hz – 19 kHz (with array preset)

• Coverage Pattern:
  105° nominal horizontal coverage (400 Hz – 16 kHz)

• Maximum SPL:
  135 dB peak output

• System Type:
  Two-way active line array loudspeaker

• Amplifier Type:
  Built-in Class-D amplification

• Continuous Power Handling:
  Total: 600 W

  • Low Frequency (LF): 400 W

  • High Frequency (HF): 200 W

• LF Drivers:
  Two JBL 261G-1, 10-inch woofers

  • Dual 2-inch voice coils

  • Neodymium Differential Drive® motor structure

• HF Driver:
  One JBL 2432H-3 compression driver

  • 1.5-inch exit

  • 3-inch voice coil

  • Neodymium magnet

• Enclosure Construction:
  Durable polypropylene shell with aluminum baffle and internal plywood bracing

  • Includes four recessed handles for easy transport

• Inter-Box Angle Options:
  Adjustable from 0.5° to 12° in 1° increments

• Dimensions (H × W × D):
  305 mm × 716 mm × 519 mm
  (12.0 in × 28.2 in × 20.5 in)

• Net Weight:
  26.7 kg (59 lbs)
