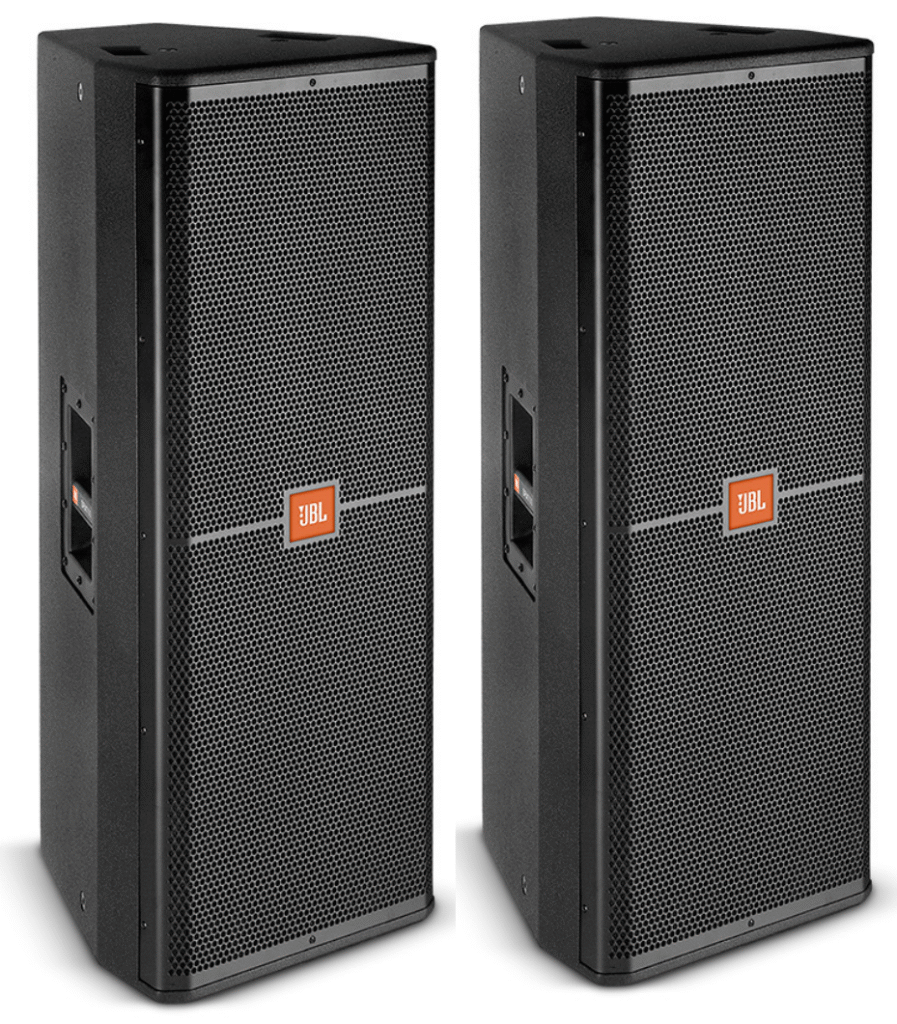

Dual 15″ High-Power Two-Way Loudspeaker

For top-tier performance with easy setup, just one high-power amplifier paired with two SRX725 speakers delivers exceptional sound quality and deep, powerful bass.

JBL, SRX725 2-Way Dual 15inch Speaker Cabinet India Live Sound



Applications

The SRX725 is an ideal choice when both high performance and simplicity are required. With just a pair of SRX725 speakers and a single high-power amplifier, you get a complete sound system capable of delivering powerful bass, reinforcing kick drums, or playing high-volume music in clubs and other venues.

JBL, SRX725 2-Way Dual 15inch Speaker Cabinet India Live Sound

Each SRX725 is equipped with two 380 mm (15″) 2265H patented* Differential Drive® woofers, offering a combined continuous power handling of 1200 watts. For high frequencies, it features the renowned 2451H neodymium compression driver with a 102 mm (4″) voice coil, mounted to a 75° x 50° aluminum horn.

JBL, SRX725 2-Way Dual 15inch Speaker Cabinet India Live Sound

The 75° coverage angle is wide enough for effective one-per-side audience coverage, yet narrow enough to allow multiple speakers to be splayed without excessive overlap.

Users can easily switch between bi-amplified and full-range passive operation using a recessed high-current switch on the input panel.

For installations requiring suspension, the SRX725F flying version is available. It supports both cost-effective fixed installations using forged eyebolts (not included) and portable setups with detachable track fittings

JBL, SRX725 2-Way Dual 15inch Speaker Cabinet India Live Sound



The enclosure is built from premium birch plywood and finished with JBL’s durable DuraFlex™ coating. A precision CNC-machined 16-gauge steel grille wraps seamlessly around the sides, eliminating any front-facing edges that could cause acoustic interference. Internally, the grille is lined with acoustically transparent foam, offering added protection for the drivers while enhancing the speaker’s clean, professional look.

Specifications

  • Frequency Range (-10 dB): 37 Hz – 20 kHz

  • Frequency Response (±3 dB): 53 Hz – 20 kHz

  • Coverage Pattern: 75° x 50° nominal

  • Crossover Modes: Bi-amp / Passive (externally switchable)

  • Crossover Frequency: 1.2 kHz

Power Ratings:

  • Passive Mode:

    • 1200 W (Continuous) / 2400 W (Program) / 4800 W (Peak)

  • Bi-amp Mode:

    • LF: 1200 W / 2400 W / 4800 W

    • HF: 75 W / 150 W / 300 W

  • Maximum SPL: 136 dB peak

  • System Sensitivity (1W @ 1m): 99 dB SPL (passive mode)

Drivers:

  • LF Driver: 2 × JBL 2265H 380 mm (15″) Differential Drive® woofers with neodymium magnets and dual voice coils

  • HF Driver: 1 × JBL 2451H 102 mm (4″) voice coil neodymium compression driver

Impedance:

  • Passive: 4 ohms

  • Bi-amp LF: 4 ohms

  • Bi-amp HF: 8 ohms

Active Tunings: Compatible with all dbx DriveRack models.

Enclosure:

  • Trapezoidal shape, constructed from 15 mm, 11-ply birch plywood

  • Suspension / Mounting (SRX725F only): 5 suspension points for M10 eyebolts or optional track fittings

  • Transport: 2 steel handles

Finish & Grille:

  • Finish: Black DuraFlex™ coating

  • Grille: Powder-coated black 16-gauge perforated steel with acoustically transparent charcoal foam backing, removable JBL badge, and punched JBL logo

Connectivity:

  • 2 × Neutrik® Speakon® NL-4 input connectors

Dimensions (H × W × D):

  • 1219 mm × 541 mm × 508 mm (48 in × 21.3 in × 20 in)

Net Weight:

  • 45 kg (100 lb)

Optional Accessories:

  • SRX725-CVR: Padded pull-over cover

  • SRX-FF3: Set of 3 detachable flying fittings

  • 229-00009-01: Set of 3 forged 10 mm eyebolts with washers
