Dual 18″ High-Power Subwoofer

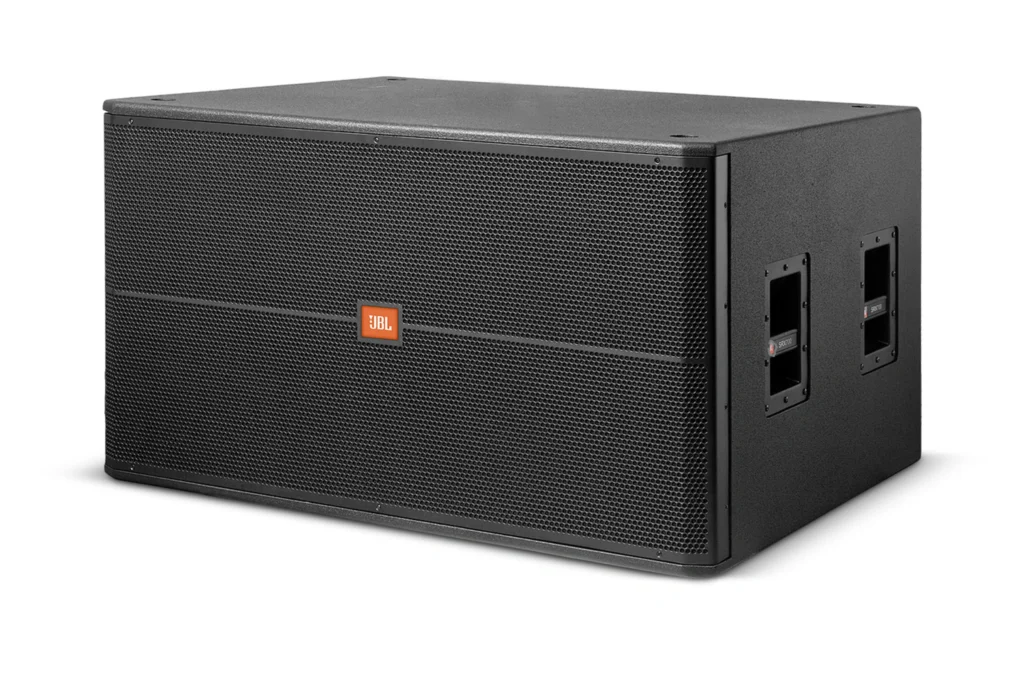

The SRX728S is a powerful subwoofer system featuring two 18″ 2268H woofers with neodymium magnets and patented Differential Drive® technology, housed in a front-loaded, vented enclosure for deep, impactful bass.
Features
-
Dual 18″ 2268H Differential Drive® woofers for deep and extended low-frequency performance
-
Large vented design minimizes distortion and improves airflow for cleaner bass output
Applications
-
Live performance venues
-
Mobile and fixed DJ systems
-
Sound system rental services
The SRX728S is a powerful subwoofer system designed to deliver deep, punchy bass for demanding live sound environments. It features two 18″ 2268H woofers with neodymium magnets and JBL’s patented Differential Drive® technology, all housed in a front-loaded, vented enclosure engineered to minimize frontal area while maximizing output.
Built for flexibility, the SRX728S includes versatile input connectivity to suit various cabling setups. A recessed external switch allows users to select between +1/-1 or +2/-2 contacts, and with a simple internal wiring adjustment, each woofer can be powered independently using separate amplifier channels.
The enclosure is crafted from high-quality birch plywood and finished in JBL’s rugged DuraFlex™ coating for durability on the road. Each woofer sits in its own isolated chamber, and the cabinet is internally braced to reduce vibration and enhance low-frequency clarity. A CNC-machined 16-gauge steel grille, backed by acoustically transparent foam, not only protects the drivers but also adds a sleek, professional appearance.
Specifications
-
Frequency Range (-10 dB): 27 Hz to 220 Hz
-
Frequency Response (±3 dB): 33 Hz to 220 Hz
-
Input Configuration: Switchable between +1/-1 and +2/-2, with internal selection for parallel or discrete mode
-
Recommended Crossover Settings:
-
High-Pass Filter: 80 Hz at 24 dB/octave
-
Low-Pass Filter: 80 Hz at 24 dB/octave
-
Power Handling (Parallel Mode):
-
Continuous: 1600 watts
-
Program: 3200 watts
-
Peak: 6400 watts
-
Maximum Sound Pressure Level (SPL): 136 dB (peak)
-
Sensitivity: 98 dB SPL (1 watt at 1 meter)
Low-Frequency Driver:
-
Two 18″ (457 mm) JBL 2268H Differential Drive® woofers
-
Features neodymium magnets and dual voice coils for high output and low weight
Impedance:
-
Parallel Mode: 4 ohms total
-
Discrete Mode: 8 ohms per woofer (two channels)
Tuning Compatibility:
-
Fully compatible with all dbx DriveRack processors
-
Factory tuning settings available
Enclosure:
-
Rugged rectangular cabinet made from 18 mm, 13-ply birch plywood
-
Coated with a tough black DuraFlex™ finish for durability on the road
Grille:
-
Black powder-coated, 16-gauge perforated steel
-
Backed with acoustically transparent charcoal foam
-
Includes removable JBL badge and precision-punched JBL logo
Connectors:
-
Two Neutrik® Speakon® NL-4 connectors
Dimensions (H × W × D):
-
602 mm × 1067 mm × 838 mm
-
(23.7 in × 42 in × 33 in)
Weight:
-
76 kg (166.5 lb)
Optional Accessories:
-
SRX728S-CVR: Padded protective cover
JBL, SRX728S Dual 18 inch High-Power Passive Subwoofer
Note: As part of JBL’s ongoing commitment to innovation, product details and materials are subject to improvement without prior notice. Any changes made are intended to enhance performance and will always meet or exceed original specifications unless stated otherwise.
