12-inch 2-Way Multipurpose Powered Speaker

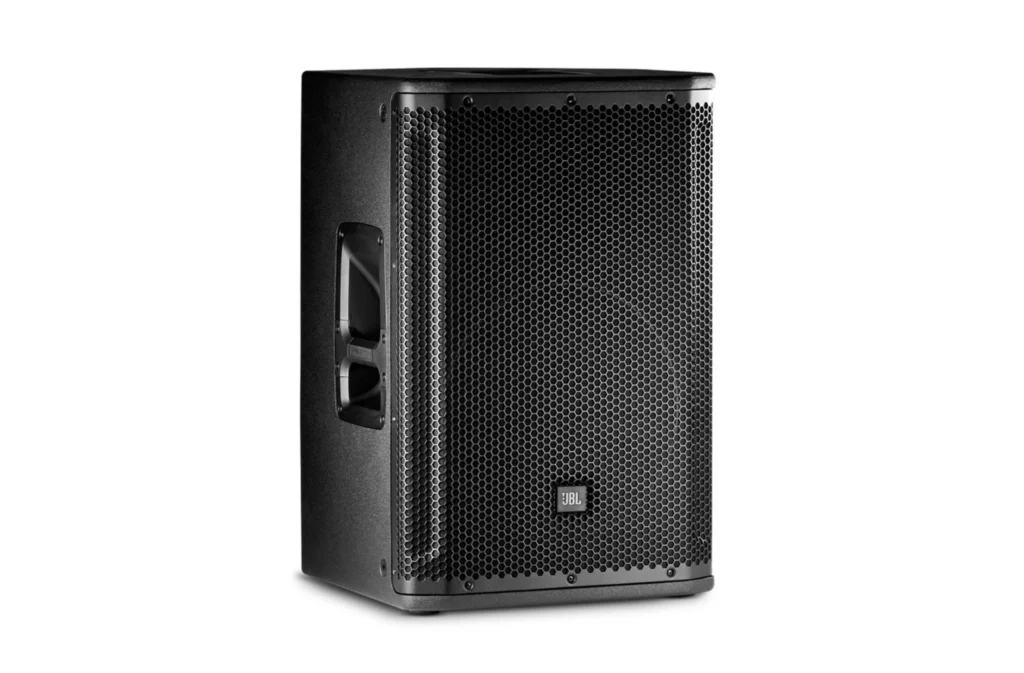

JBL, SRX812P 12-inch 2-Way Multipurpose Powered Speaker The SRX800 Series represents the next generation of high-performance powered loudspeakers, offering three full-range models and two subwoofers, all packed with advanced features that set a new benchmark in their class. At the heart of the lineup, the SRX812P—a 12″ two-way full-range speaker—combines legendary JBL drivers with 2,000 watts of proprietary Crown amplification, Front-End DriveCore™ Technology, premium user-configurable JBL DSP, and V5 Tunings for seamless integration with Vertec and VTX touring systems. HiQnet network control is also available via iOS and Android apps for flexible system management.
Built on JBL’s legacy of innovation and acoustic excellence, the SRX800 Series is engineered for touring professionals, fixed installations, and high-demand live sound environments. It delivers an uncompromising all-in-one solution with the iconic JBL sound, unmatched configurability, and full compatibility with JBL’s flagship touring systems.
Key Features
-
Purpose-Built Design
Rugged, intuitive, and built for easy transport—perfect for both touring and installed applications. -
Premium JBL Transducers
Engineered for superior sound quality, clarity, and durability. -
DriveCore™ Amplification by Crown
Delivers powerful, efficient 2,000W performance with low distortion and high headroom. -
Advanced DSP Control
A powerful 400MHz Sharc DSP provides full user control, including:-
20 Parametric EQs
-
Up to 2 seconds of delay
-
Signal generators
-
Input mixing
-
Amplifier monitoring
-
50 user presets
-
-
JBL V5 Tunings Compatibility
Integrates seamlessly with JBL’s flagship Vertec and VTX touring systems. -
Network Control
HiQnet-compatible with control via Audio Architect and mobile apps for iOS and Android. -
LCD Display & Glow-in-the-Dark Back Panel
Easy system navigation in any lighting condition with clear visual feedback and labeling. -
Flexible Mounting Options
-
M10 suspension points
-
Standard 35mm pole socket
-
Built-in feet for monitor wedge positioning
-
Applications
-
Live sound reinforcement for concerts and performances
-
Mobile and fixed DJ setups
-
Sound rental and touring systems
-
Permanent installations in venues, clubs, and houses of worship
Technology
Purposeful Design
Every element of the SRX800 Series has been carefully engineered with real-world use in mind. Ergonomic handles provide a comfortable, fatigue-free grip for easy transport. M10 suspension points, integrated feet, and standard pole/tripod mounts allow for a wide range of flexible deployment options, from flown arrays to floor monitors.
Advanced Transducer Technology
At the heart of each SRX800 model are JBL’s patented Differential Drive® ferrite drivers with 3″ voice coils and lightweight ferrite magnets—offering increased power handling, lower distortion, and deep low-frequency extension. The JBL 2432H stands out as the only neodymium compression driver in its class with a 3″ voice coil, delivering exceptional power and crystal-clear high-frequency performance.
DriveCore™ by Crown
Powering each model is Crown’s proprietary DriveCore front-end technology, pushing up to 2000 watts—the highest output in its class. With an ultra-low noise floor of 103dB signal-to-noise ratio, the SRX800 Series delivers massive SPL, ample headroom, and pristine clarity across the entire frequency spectrum.
HiQnet Network Control
Full HiQnet network integration simplifies setup and automates control interface configuration. Wired connectivity is handled through an Ethercon port, and wireless control is enabled via third-party routers. Users can manage the system using JBL’s Audio Architect software, the HiQnet Motion Control™ app for iOS, or dedicated iOS/Android standalone apps for complete remote flexibility.
Specifications – SRX812P
System Type
12″ two-way, self-powered bass-reflex loudspeaker
Maximum SPL (1m)
136 dB
Frequency Range (-10 dB)
40 Hz – 21 kHz
Frequency Response (±3 dB)
48 Hz – 20 kHz
Coverage Pattern
90° horizontal × 50° vertical
Amplifier Design
Class D
Peak Power Rating
2,000 Watts
EQ & Processing
-
20-band parametric EQ
-
Adjustable speaker delay
-
50 user-programmable presets
Inputs
-
Neutrik XLR / ¼” combo input
-
Neutrik XLR output
Outputs
2 × XLR
LF Driver
1 × JBL 2272F 12″ Differential Drive® woofer
HF Driver
1 × JBL 2432H neodymium compression driver with 3″ (76 mm) voice coil
Enclosure
-
18 mm, 11-ply Finnish birch plywood
-
Durable black DuraFlex™ finish
-
Built-in ergonomic handles
Suspension / Mounting
-
Dual 36 mm pole sockets
-
12 × M10 suspension points
Dimensions (H × W × D)
429 mm × 415 mm × 638 mm (16.87 in × 16.31 in × 25.11 in)
Net Weight
26.4 kg (58 lb)
Optional Accessories
SRX812P-CVR-DLX – Deluxe Padded Cover
-
Water-resistant black nylon outer layer
-
2.5 mm polyethylene grille protection
-
Covered handle cutouts with Velcro closures
-
Embroidered JBL logo
