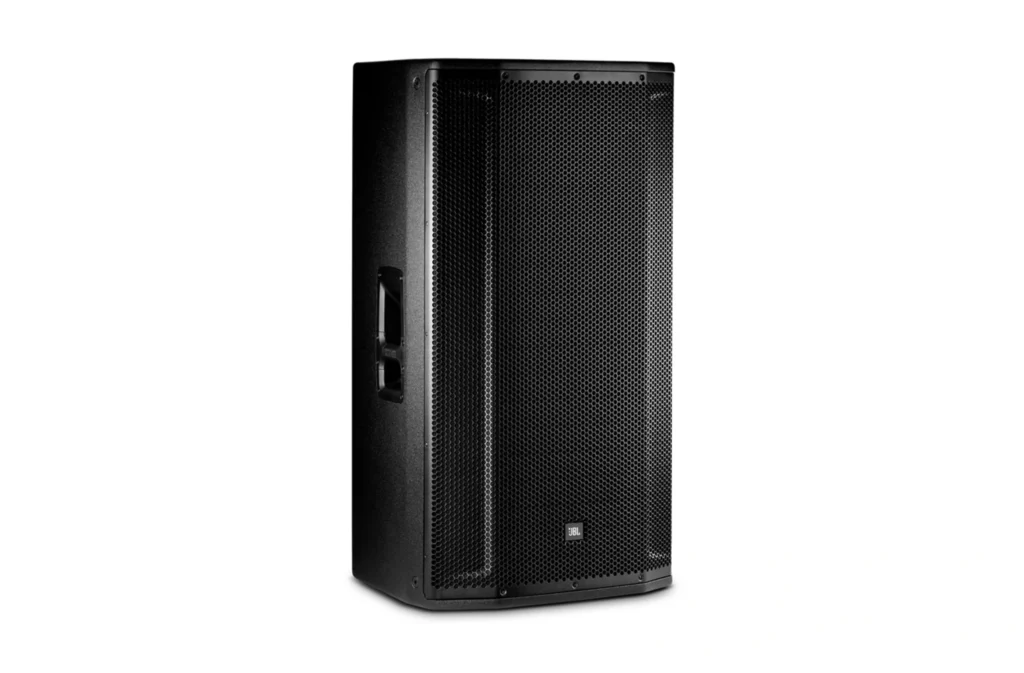

SRX835P – 15″ Three-Way Active Loudspeaker
JBL, SRX835P 15-inch 3-Way Point-Source Active Speaker The SRX800 Series represents the next generation of high-performance powered loudspeakers, designed to deliver industry-leading sound and flexibility. Comprising three full-range models and two subwoofers, the series is packed with advanced features that place it firmly at the top of its class.
At the core of the lineup, the SRX835P is a 15″ three-way powered loudspeaker that combines JBL’s legendary drivers with a powerful 2,000-watt Crown amplifier and proprietary DriveCore™ front-end technology. It also features a premium, user-configurable JBL DSP, built-in V5 Tunings for seamless compatibility with Vertec and VTX touring systems, and full HiQnet network control via iOS and Android apps.
Backed by decades of JBL innovation and expertise in professional loudspeaker design, the SRX800 Series is built to meet the demands of touring professionals, fixed installations, and high-end live sound applications. With its uncompromising performance, deep configurability, and flawless integration with JBL’s flagship touring systems, the SRX835P offers a complete all-in-one solution for top-tier audio delivery.
Features
-
Purposeful Design
Built to handle the demands of professional use, the SRX800 Series features a rugged enclosure, smart ergonomic touches, and easy portability for quick setup and teardown. -
JBL Premium Transducers
Outfitted with JBL’s renowned drivers, these speakers deliver powerful, clear, and accurate sound across the frequency spectrum. -
Crown DriveCore™ Amplification
Each model is powered by a 2,000-watt Crown amplifier with DriveCore™ technology, offering clean, reliable power with impressive headroom.
-
Fully Configurable DSP
Take full control of your sound with onboard DSP that includes 20 bands of parametric EQ, up to 2 seconds of delay, built-in signal generators, input mixing, amplifier monitoring, and space for 50 user presets. -
Network Control
Integrated HiQnet networking allows for remote control via JBL Audio Architect software and mobile apps for both iOS and Android. -
Application Presets
JBL’s factory-engineered presets simplify setup and ensure consistent performance for different applications and environments. -
User-Friendly Display
A built-in LCD screen makes navigation easy, while glow-in-the-dark ink on the rear panel ensures visibility in low-light conditions. -
Flexible Mounting Options
Includes M10 suspension points, a standard 35mm pole cup, and built-in feet for monitor angle placement—offering versatile setup options for any stage or venue.
SRX835P Specifications
System Type
Self-powered, 15″ three-way bass-reflex loudspeaker
Maximum SPL (1m)
137 dB
Frequency Range (-10 dB)
33 Hz – 21 kHz
Frequency Response (±3 dB)
41 Hz – 20 kHz
Coverage Pattern
60° horizontal × 40° vertical
Amplifier Type
Class D
Peak Power Output
2,000 Watts
DSP Features
-
20-band parametric EQ
-
Adjustable speaker delay
-
50 user-preset slots for custom configurations
Inputs
-
Neutrik XLR / ¼” combo input
-
Neutrik XLR loop-through output
Outputs
2 × XLR
Enclosure
-
18 mm, 11-ply Finnish birch plywood
-
Durable black DuraFlex™ finish
-
Integrated recessed handles for easy transport
Mounting / Suspension
-
Single 36 mm pole socket
-
12 × M10 suspension points for rigging
Dimensions (H × W × D)
476 mm × 544 mm × 984 mm (18.74 in × 21.4 in × 38.74 in)
Net Weight
38.6 kg (85 lb)
Drivers
-
Low Frequency (LF): 1 × 15″ JBL 2275F Differential Drive® woofer
-
Mid Frequency (MF): 1 × JBL 2107H
-
High Frequency (HF): 1 × JBL 2432H neodymium compression driver with 3″ (76 mm) voice coil
Optional Accessory
SRX835P-CVR-DLX – Deluxe Padded Cover
-
Tailored for the SRX835P
-
Water-resistant black nylon outer shell
-
2.5 mm polyethylene grille protector
-
Covered handle openings with Velcro closures
-
Features a high-quality embroidered JBL logo
