RCF HDL 6-A ACTIVE LINE ARRAY MODULE Specification and Details 2025

FEATURES

1400 W, two-way amplification
131 dB max SPL
1.7″ voice coil neodymium compression driver
2 x high power neodymium 6.0″woofers
48 kHz, 32 bit floating point DSP processing
Symmetrical design
Extremely low weight
FiRPHASE processing

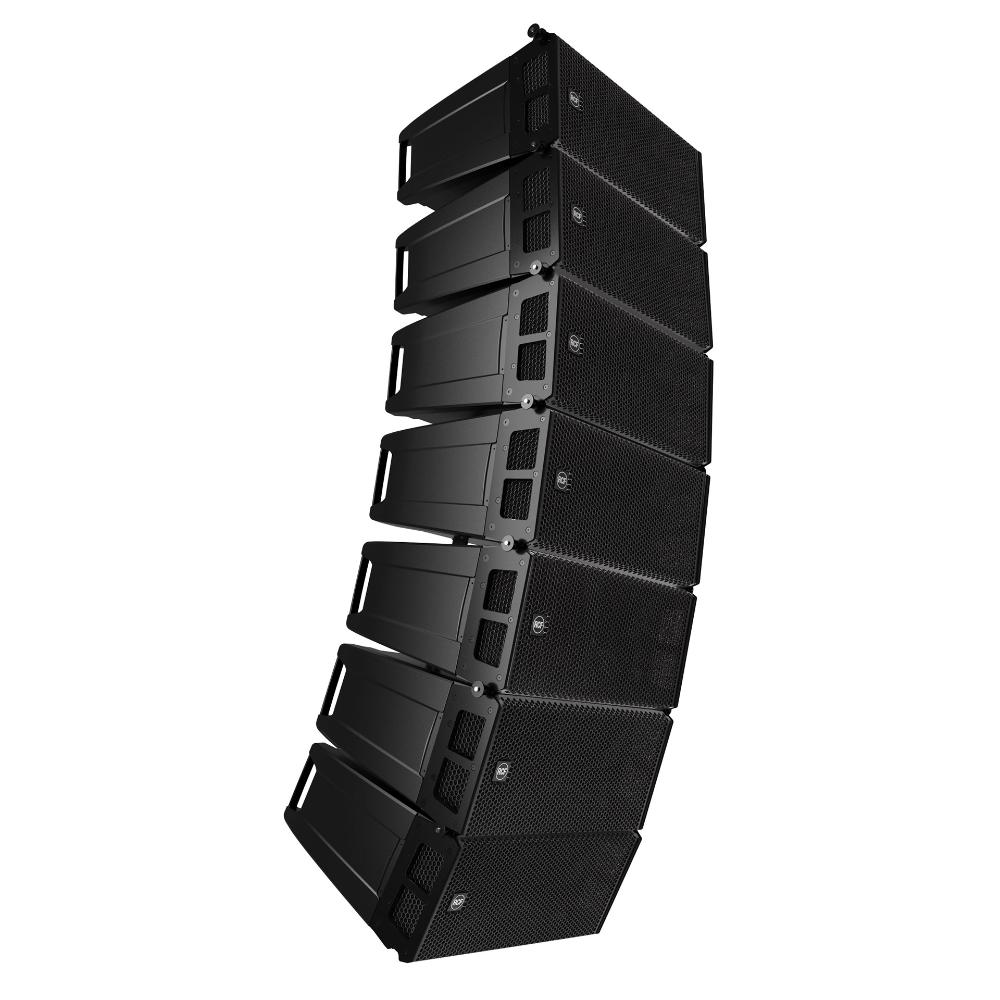

RCF HDL 6-A ACTIVE LINE ARRAY MODULE Specification and Details 2025 The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

Black & White

The design of this speaker is inspired by the touring industry, combining RCF’s professional sound expertise in a compact and efficient cabinet.

For applications where a lighter, more refined aesthetic is preferred, the HDL 6-A is also available in a sleek white finish.

Custom-Designed Waveguide

Engineered for precision, the custom-designed waveguide delivers consistent 100° x 10° coverage with a smooth, linear high-frequency response.

Its large-format compression driver, paired with the waveguide, ensures exceptional clarity and intelligibility—even at long distances.

Symmetrical Design

The symmetrical design of the HDL 6-A ensures consistent, even coverage without dropouts or signal loss across the listening area.

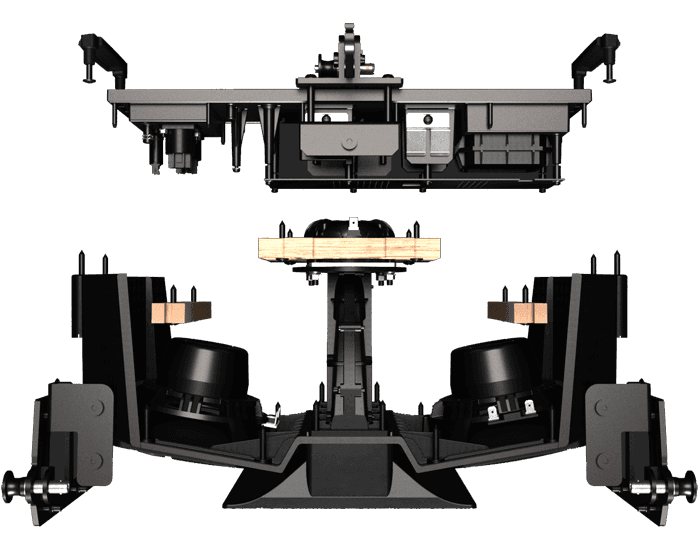

Built to touring-grade standards, the enclosure features a reinforced composite polypropylene structure with internal wooden bracing for added durability. Two aluminum rear handles make handling and transport easy.

Unlike many competing systems that lose clarity and power over distance, the HDL 6-A maintains excellent intelligibility, definition, and signal strength throughout its throw range..

ACOUSTICAL SPECIFICATIONS

Frequency Response: 65 Hz – 20,000 Hz
Maximum SPL (1m): 131 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 10°

TRANSDUCERS

High-Frequency Driver: 1 x 1.0″ neodymium, 1.75″ voice coil
Low-Frequency Drivers: 2 x 6.0″ neodymium, 2.0″ voice coil

INPUT / OUTPUT SECTION

Input Signal: Balanced / Unbalanced
Input Connectors: XLR
Output Connectors: XLR
Input Sensitivity: +4 dBu

PROCESSOR SECTION

Crossover Frequency: 900 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: HF Correction

POWER SECTION

Total Power: 1400 W Peak / 700 W RMS
High Frequencies: 400 W Peak / 200 W RMS
Low Frequencies: 1000 W Peak / 500 W RMS
Cooling: Convection
Power Connections: PowerCON In/Out

STANDARD COMPLIANCE

Safety Certification: CE Compliant

PHYSICAL SPECIFICATIONS

Cabinet Material: Composite Polypropylene with Internal Reinforcement
Hardware: Integrated Array Fittings
Handles: 2 Rear Aluminum Handles
Grille: Steel
Available Colors: Black or White

DIMENSIONS / WEIGHT

Height: 237 mm / 9.33 in
Width: 470 mm / 18.5 in
Depth: 377 mm / 14.84 in
Weight: 11.6 kg / 25.57 lbs

SHIPPING INFORMATION

Package Height: 260 mm / 10.24 in
Package Width: 550 mm / 21.65 in
Package Depth: 425 mm / 16.73 in
Shipping Weight: 13 kg / 28.66 lbs
