JBL, Harman VRX918S 18 inch High Power Passive Subwoofer Professional India 2025

JBL 18 inch High Power Passive Subwoofer 800 Watt

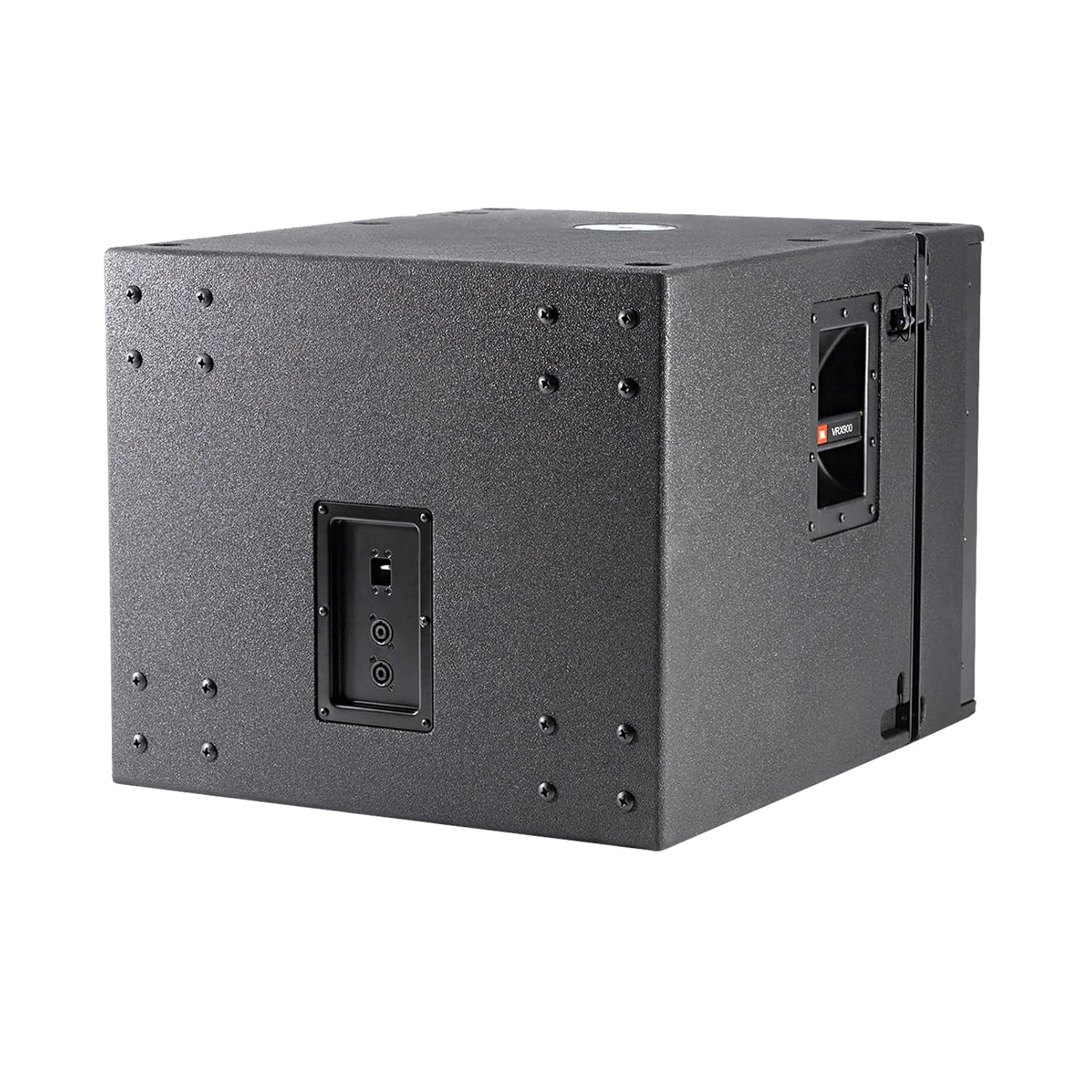

JBL, Harman VRX918S 18 inch High Power Passive Subwoofer India 2025 The VRX918S is a compact yet powerful subwoofer designed for suspension, featuring an 18″ 2268H woofer with a neodymium magnet and JBL’s patented Differential Drive® technology, housed in a front-loaded, vented enclosure.

Key Future

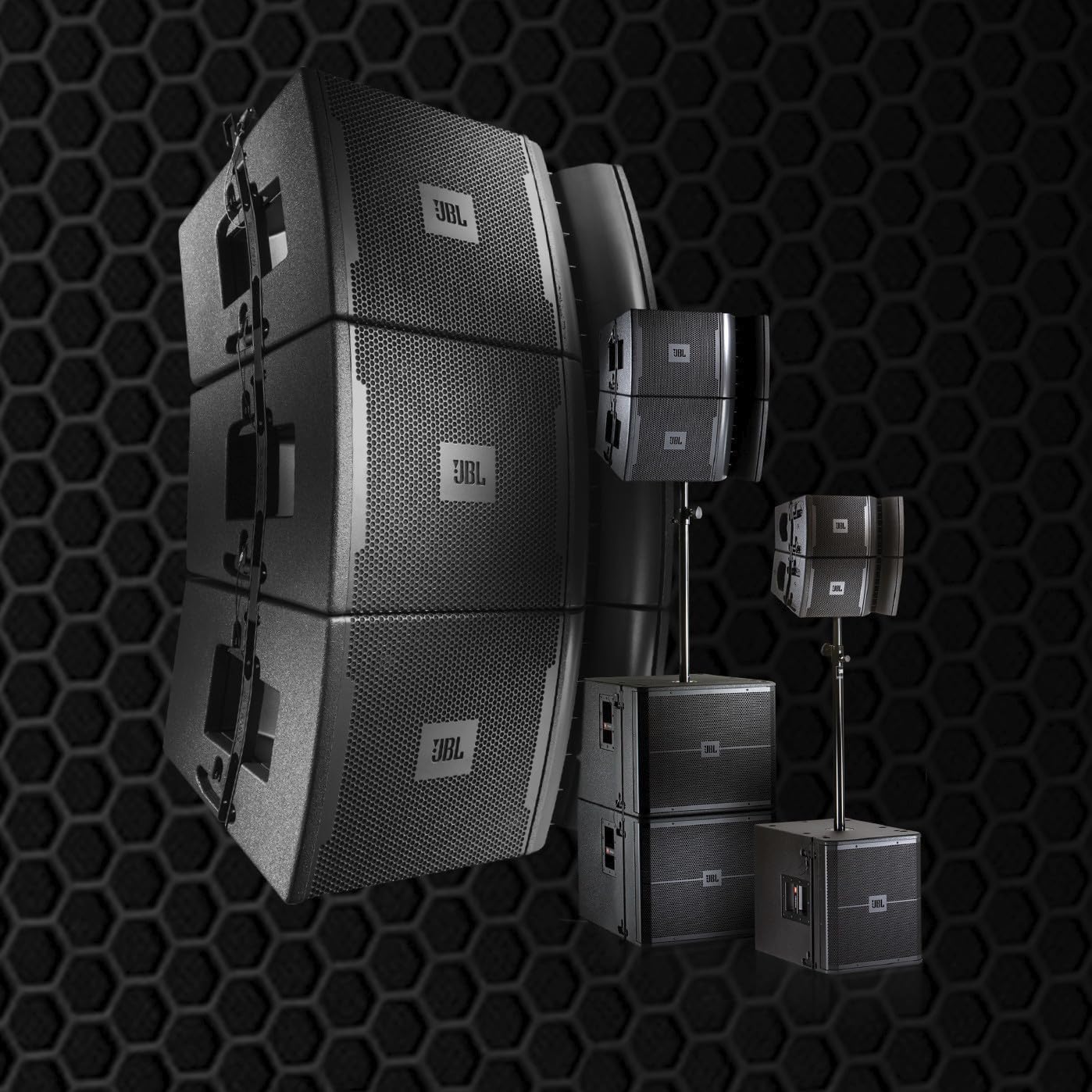

Built-in rigging hardware allows easy attachment to VRX932LA line arrays and optional array frames
18-inch 2268H Differential Drive® woofer delivers deep, powerful low-frequency performance
Oversized port design minimizes distortion and enhances clarity
20 mm threaded pole socket ensures stable and secure mounting of satellite speakers

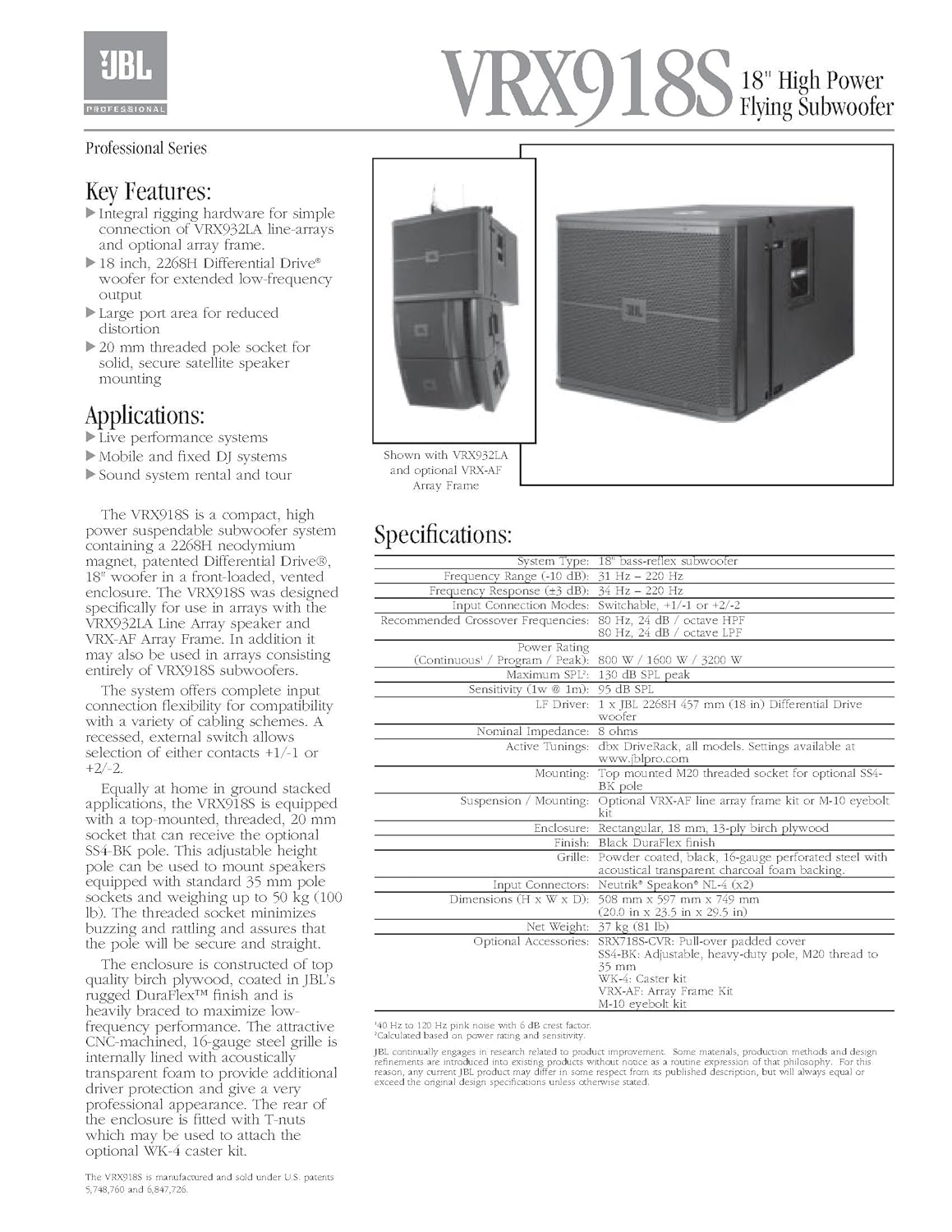

Specifications – JBL VRX918S Subwoofer

Power Handling: 800W (Continuous) / 1600W (Program) / 3200W (Peak)
Frequency Range (-10 dB): 31 Hz – 220 Hz
Recommended Crossover Frequencies:
- High-Pass Filter (HPF): 80 Hz, 24 dB/octave
- Low-Pass Filter (LPF): 80 Hz, 24 dB/octave
Maximum SPL: 130 dB peak
Sensitivity (1W @ 1m): 95 dB SPL
LF Driver: 18″ JBL 2268H Differential Drive® woofer
Nominal Impedance: 8 ohms

Enclosure & Mounting

Construction: 18 mm, 13-ply birch plywood, rectangular cabinet
Finish: Black DuraFlex™
Grille: 16-gauge perforated steel, powder-coated black with acoustically transparent charcoal foam backing
Mounting Options:
- Optional VRX932LA-AF array frame kit
- 10 mm eyebolts for suspension
- 20 mm threaded pole socket for satellite speaker mounting

Connectivity

Inputs: 2 x Neutrik® Speakon® NL-4
Outputs: 1 x XLR

Dimensions & Weight

Dimensions (H x W x D): 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Net Weight: 37 kg (81 lb)

Optional Accessories

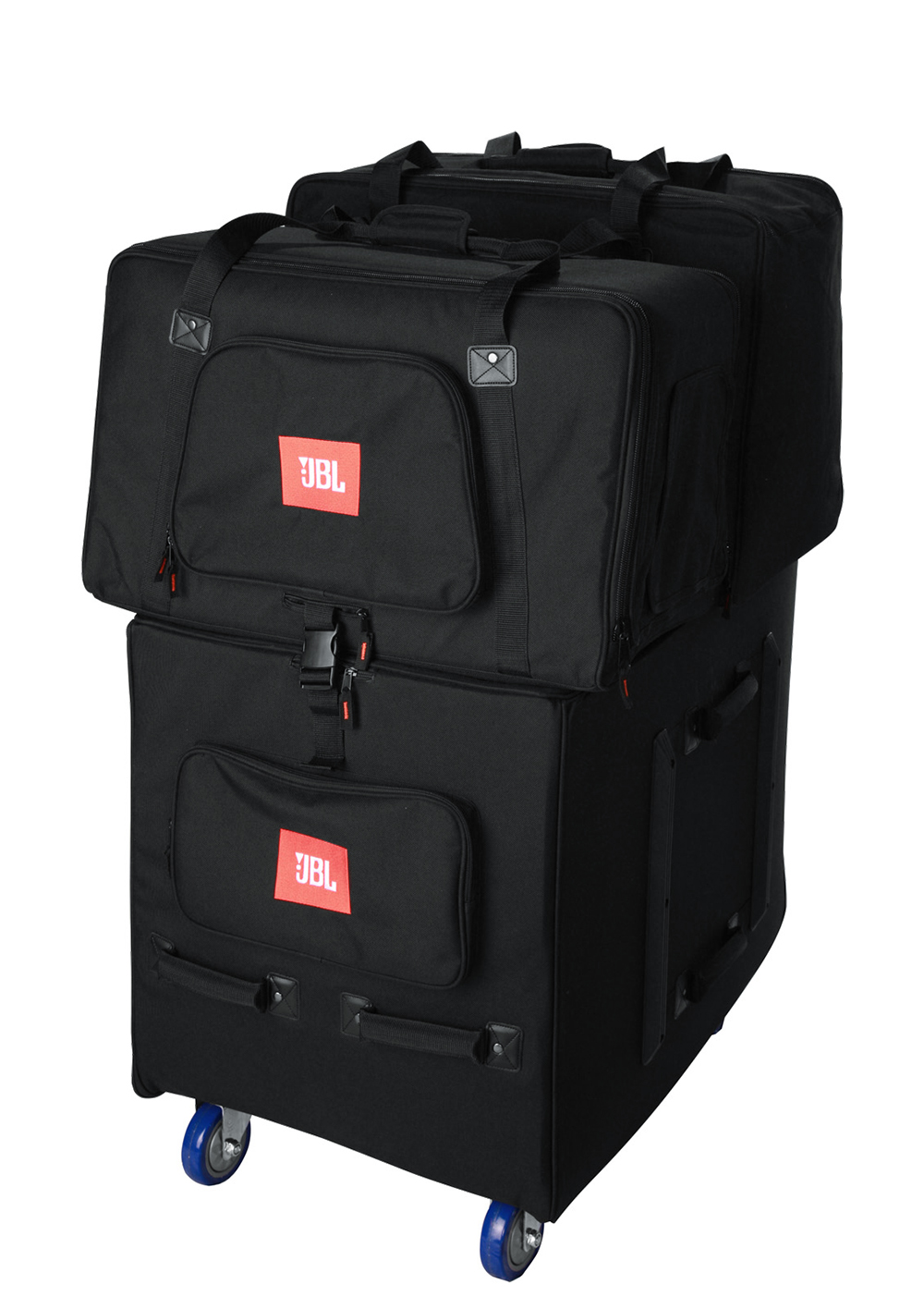

SRX718S-CVR: Protective padded cover
SS4-BK: Heavy-duty adjustable pole (M20 to 35 mm)
WK-4: Caster kit
VRX-AF: Array frame kit
M-10 Eyebolt Kit: For suspension mounting
