SRX815P – 15″ Two-Way Powered Loudspeaker

The SRX800 Series represents the next generation of high-performance powered loudspeakers, designed to set a new standard in professional sound. Featuring three full-range models and two subwoofers, the series delivers class-leading performance, advanced technology, and flexible configuration options that make it the top choice for touring professionals, rental companies, and permanent installations.

At the heart of the lineup, the SRX815P is a 15″ two-way powered speaker that combines JBL’s legendary transducer design with proprietary 2,000-watt Crown amplification and Crown’s DriveCore™ front-end technology. With premium user-configurable DSP, built-in V5 Tunings for seamless integration with JBL’s flagship Vertec and VTX touring systems, and HiQnet network control via iOS and Android, the SRX815P offers a fully integrated, no-compromise solution for the most demanding live sound environments.

Key Features

• Purposeful Design
  Rugged, road-ready construction with ergonomic handles for easy transport and setup.

• JBL Premium Transducers
  Industry-leading components deliver powerful, precise sound with excellent clarity and low distortion.

• DriveCore™ Amplification by Crown
  Built-in 2,000-watt Class D amplifier ensures high output with consistent performance and reliability.

• Advanced User-Configurable DSP
  Includes 20 parametric EQs, delay settings, signal generators, amplifier monitoring, and 50 user presets.

• Network Control
  Full HiQnet integration with control via Audio Architect software and mobile apps for iOS and Android.

• JBL Engineered Application Presets
  Optimized for a range of applications and environments for fast, effective setup.

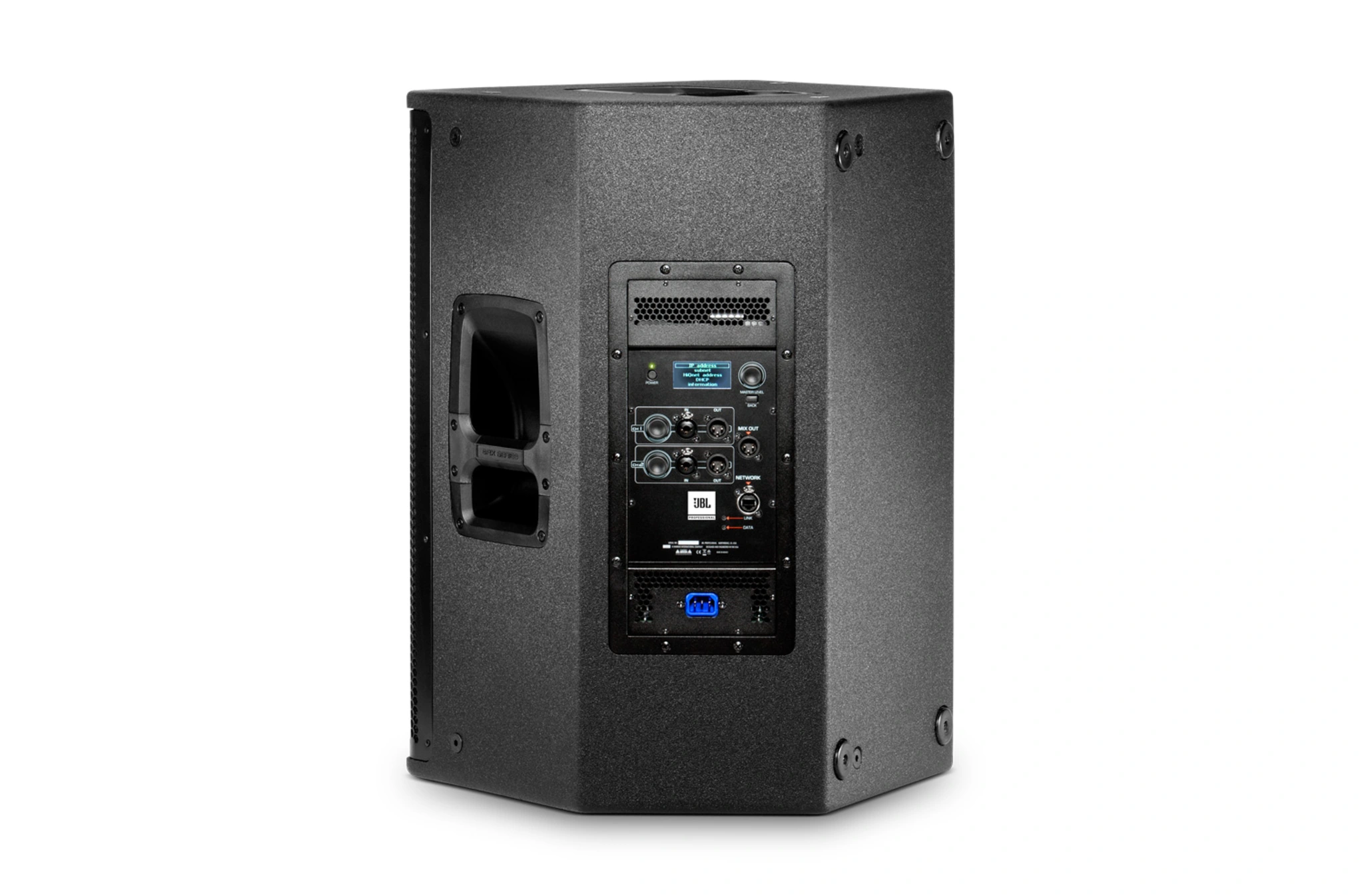

• Integrated LCD and Glow-in-the-Dark Back Panel
  Provides clear visibility and intuitive control, even in low-light settings.

• Flexible Mounting Options

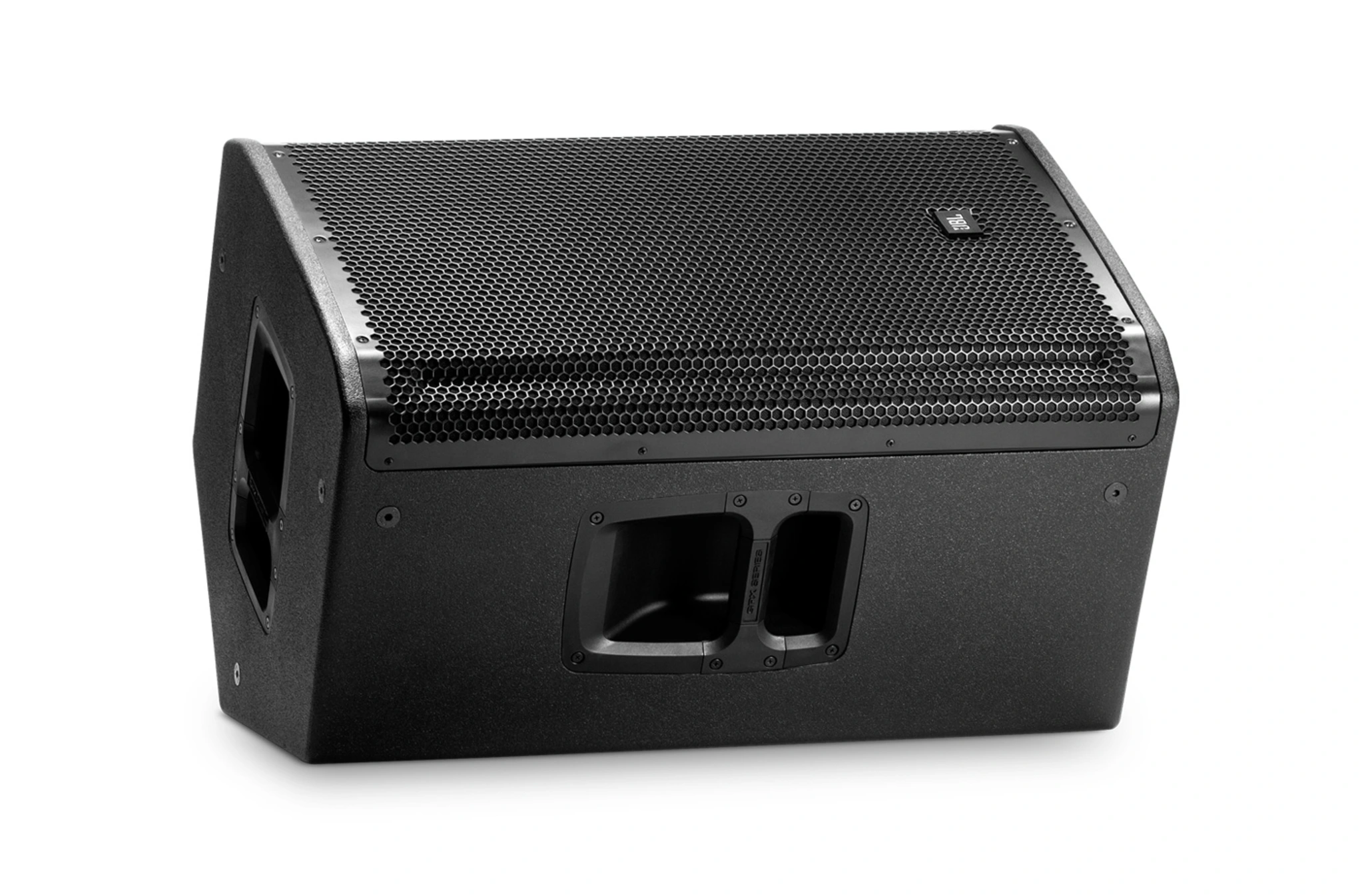

  Equipped with 12 M10 suspension points, a standard 35mm pole cup, and built-in feet for monitor angle use.

SRX815P Specifications

System Type
15″ two-way, self-powered bass-reflex loudspeaker

Maximum SPL (1m)
137 dB

Frequency Range (-10 dB)
36 Hz – 21 kHz

Frequency Response (±3 dB)
44 Hz – 20 kHz

Coverage Pattern
90° horizontal × 50° vertical

Amplifier Type
Class D

Peak Power Output
2,000 Watts



Digital Signal Processing (DSP)

• 20-band parametric EQ

• Adjustable speaker delay

• 50 user-programmable preset slots

Inputs

• Neutrik XLR / ¼” combo input

• Neutrik XLR loop-through output

Outputs
2 × XLR

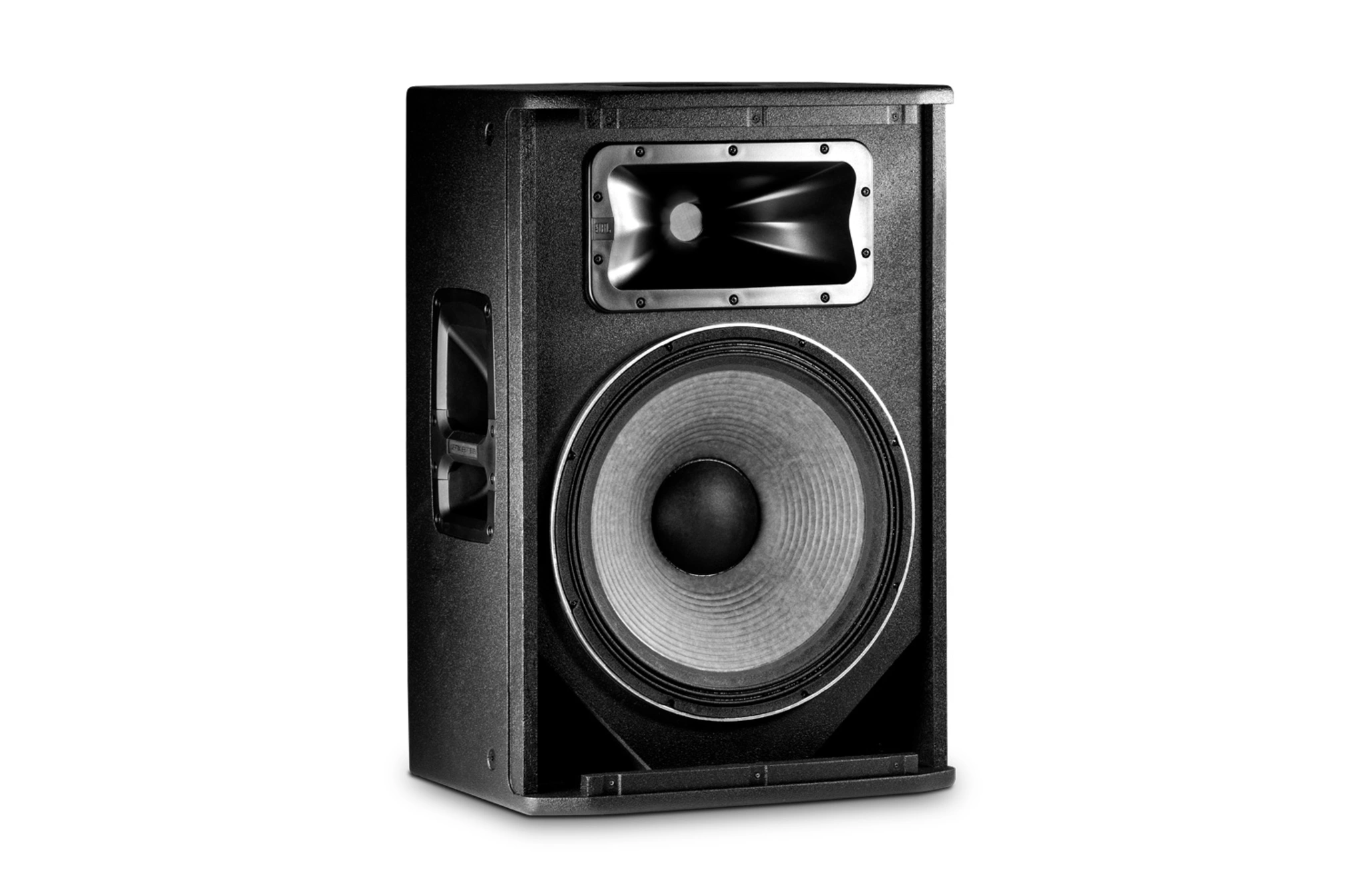

Low Frequency Driver
1 × JBL 2275F 15″ Differential Drive® woofer

High Frequency Driver
1 × JBL 2432H neodymium compression driver with 3″ (76 mm) voice coil

Enclosure

• 18 mm, 11-ply Finnish birch plywood

• Rugged black DuraFlex™ finish

• Integrated recessed handles for easy transport

Mounting / Suspension

• Dual 36 mm pole sockets

• 12 × M10 suspension points

Dimensions (H × W × D)
478 mm × 458 mm × 691 mm (18.82 in × 18.03 in × 27.20 in)

Net Weight
28.6 kg (63 lb)

---

Optional Accessory

SRX815P-CVR-DLX – Deluxe Padded Cover

• Custom-fit for the SRX815P

• Water-resistant black nylon outer layer

• 2.5 mm polyethylene grille protector

• Covered handle access with Velcro closure

• Features an embroidered JBL logo
